Compact Structure Confined Spaces Hot Sale – SV300 Side Grip Pile Driver from High Quality Side Grip Pile Driver Manufacturer
Λεπτομέρειες
| Επισημαίνω | compact side grip pile driver,confined spaces pile driver,SV300 side grip pile driver |
||
|---|---|---|---|
Περιγραφή προϊόντων

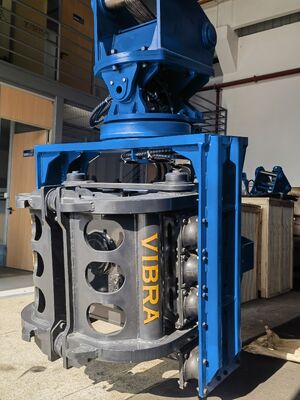

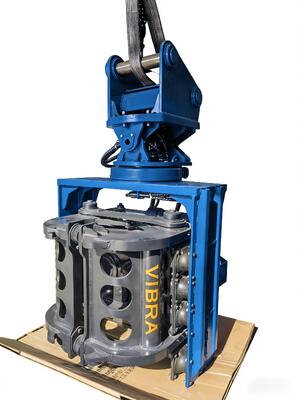

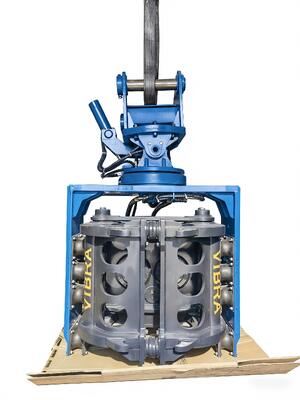

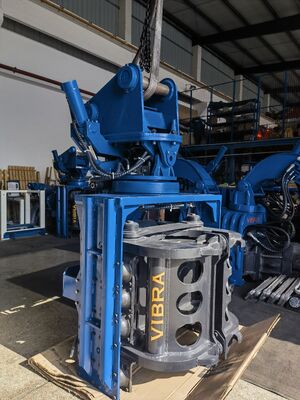

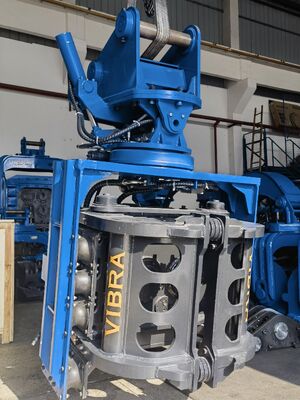

SV300 Side Grip Pile Driver – Engineered for Low Clearance & Tough Conditions
In modern construction, working in confined spaces, low headroom areas like factories, bridges, or urban basements demands specialized equipment. The SV300 Side Grip Pile Driver is a premium solution that transforms a standard 25–32 ton excavator into a highly efficient piling machine. As a product of Side Grip Pile Driver Manufacturers China, it combines robust engineering with field‑proven reliability for markets across Southeast Asia, India, and Russia.
Key Features & Advantages
High Frequency Vibration Output Made In China
The SV300 delivers a centrifugal force of 558 kN and an eccentric moment of 5.6 kgm, operating at a frequency range of 2300–3000 rpm. This High Frequency Vibration Output Made In China ensures rapid soil liquefaction, allowing smooth driving and extraction of steel sheet piles, H‑beams, and circular pipes even in dense or frozen ground – a common challenge in Russian winters and Indian laterite soils.
High Quality Dual Pump Flow Merging System
Efficiency is at the core of this machine. The High Quality Dual Pump Flow Merging System intelligently combines oil flow from the excavator’s auxiliary circuits, achieving a working flow of 220–280 L/min at 32 MPa. This system provides consistent power to the vibratory module and clamping cylinders, reducing cycle time and fuel consumption – critical for cost‑sensitive projects in Southeast Asia and India.
Compact Structure Confined Spaces Hot Sale
With overall dimensions of 1343×1230×2923 mm and a weight of 3150 kg (including connector and clamp), the SV300 features an ultra‑compact design. Its Compact Structure Confined Spaces Hot Sale advantage means you can work inside factory buildings, under bridges, or between existing foundations. The side clamp and bottom clamp work together, enabling full piling operations without additional cranes or auxiliary equipment – ideal for narrow urban jobsites in Manila, Jakarta, or Moscow.
Full Hydraulic Functionality
- 360° continuous rotation and ±30° bidirectional side tilt allow precise alignment even on uneven ground.
- Side clamp force: 385 kN | Bottom clamp force: 490 kN – holds piles firmly without deformation.
- Easy adaption to 25–32 ton excavators with minimal modification – no need for expensive dedicated piling rigs.
Technical Parameters (SV300)
| Parameter | Value |
|---|---|
| Eccentric Moment | 5.6 kgm |
| Centrifugal Force | 558 kN |
| Frequency Range | 2300–3000 rpm |
| Side Clamp Force | 385 kN |
| Bottom Clamp Force | 490 kN |
| Operation Pressure | 32 MPa |
| Operation Flow | 220–280 L/min |
| Rotate/Tilt Angle | 360° / ±30° |
| Dimensions (L×W×H) | 1343×1230×2923 mm |
| Weight (incl. connector & clamp) | 3150 kg |
| Suitable Excavator | 25–32 ton |
Why Choose SV300 for Southeast Asia, India & Russia?
- Southeast Asia – High humidity and soft soil? The vibration output penetrates loose sand and clay quickly. Compact size works in tight palm oil plantations or city drainage projects.
- India – Diverse ground conditions from rocky Deccan plateau to alluvial Ganges basin. The High Quality Dual Pump Flow Merging System maintains stable power even when the excavator’s hydraulic oil heats up. Local dealers and service support available through Side Grip Pile Driver Manufacturers China network.
- Russia – Low temperatures and permafrost require robust seals and high vibration frequency. The SV300’s frequency range breaks frozen ground layers efficiently. Its compact footprint allows indoor piling inside existing industrial buildings.
FAQ – Frequently Asked Questions
Q1: Is the SV300 easy to install on my existing excavator?
A: Yes. It comes with a universal connector bracket. Any 25–32 ton excavator with standard auxiliary hydraulics can be fitted within 4–6 hours. No welding or permanent modification required.
Q2: Can it handle both driving and extraction?
A: Absolutely. The vibratory hammer works in both directions. The side and bottom clamps grip the pile for driving and extract it by reversing the eccentric rotation – one device completes the whole process.
Q3: How does the High Quality Dual Pump Flow Merging System benefit me?
A: It merges two pump flows into one high‑pressure stream, giving you more power without upgrading your excavator’s hydraulics. You get 558 kN of force while using a standard 25–32 ton carrier – saving equipment cost.
Q4: What pile types are compatible?
A: Steel sheet piles (U‑type, Z‑type), H‑beams (up to 400 mm flange), and circular pipe piles (up to 600 mm diameter) – replaceable clamp inserts are available.
Q5: Is spare part supply reliable for Russia and India?
A: As a leading Side Grip Pile Driver Manufacturers China, we keep global stock. Spare parts (hoses, bushings, vibration cartridges) are shipped within 48 hours to major hubs in Mumbai, Delhi, Singapore, and Moscow.
Q6: Does the compact design sacrifice stability?
A: No. Despite its small footprint, the low center of gravity and wide clamp jaw ensure safe handling even with long piles (up to 12 m). The Compact Structure Confined Spaces Hot Sale design prioritises both agility and safety.
