Hydraulic Pile Driver: 485 kN Centrifugal Force & 18m Max Pile Length for Deep Foundation

  • Hydraulic Pile Driver: 485 kN Centrifugal Force & 18m Max Pile Length for Deep Foundation
  • Hydraulic Pile Driver: 485 kN Centrifugal Force & 18m Max Pile Length for Deep Foundation
  • Hydraulic Pile Driver: 485 kN Centrifugal Force & 18m Max Pile Length for Deep Foundation
  • Hydraulic Pile Driver: 485 kN Centrifugal Force & 18m Max Pile Length for Deep Foundation
Τόπος καταγωγής Κίνα
Μάρκα VIBRA
Πιστοποίηση ISO 9001:2015
Αριθμό μοντέλου Fv-280
Ποσότητα παραγγελίας min 1 ΣΕΤ
Τιμή Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες 4 έως 10 CBM, παλέτες και ξύλινα κουτιά
Χρόνος παράδοσης 7-30 ημέρες
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 15 σετ/μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Βάρος 1500 κιλά Πίεση λειτουργίας 20-35 MPa
Κατάλληλοι τύποι στοίβων Σιδηρούργημα, χάλυβα, ξύλο Χαρακτηριστικό Λειτουργία γρήγορης μετατροπής
Μπράτσο 750 κιλά Φυγόκεντρη Δύναμη 172KN
Διαστάσεις 2500 mm x 800 mm x 1200 mm Υλικό Ο χάλυβας, τα υλικά πυρήνα είναι όλα εισαγόμενα
Βάρος εκσκαφέα 40~45 τόνοι Ροή υδραυλικού πηγαδιού 50-100 L/λεπτό
Βάρος βραχίονα 750 κιλά Ανώτατο μήκος σωρών 12 μ
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

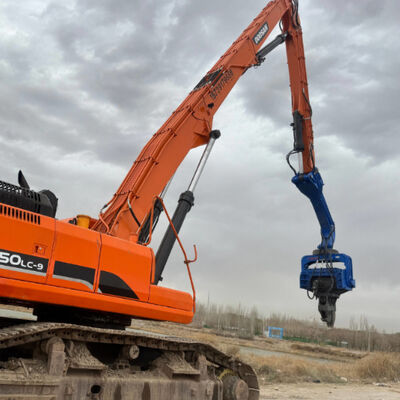

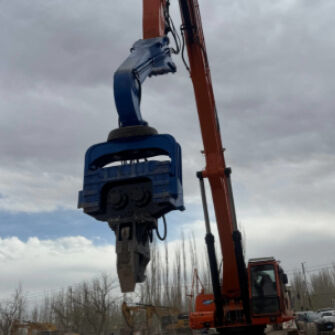

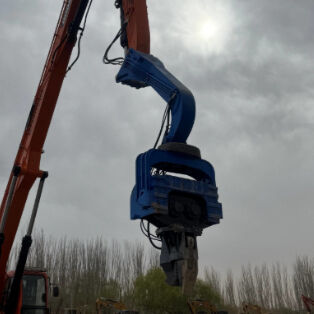

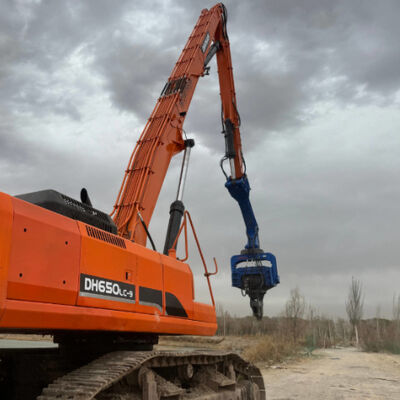

Hydraulic Pile Driver: 485 kN Centrifugal Force & 18m Max Pile Length for Deep Foundation

Product Keywords: Hydraulic Pile Driver, Hydraulic Impact Hammer, Vibratory Pile Driver, Piling Equipment, Foundation Hammer, FV-280 Pile Driver, Excavator-Mounted Pile Hammer.

Product Overview

The VIBRA FV Series Hydraulic Pile Driver is engineered as a high-efficiency, robust solution for demanding foundation work globally. Designed to meet the challenges of diverse soil conditions and project scales, it is particularly suited for the growing infrastructure markets of Central Asia, Southeast Asia, and Russia. This excavator-mounted hammer delivers powerful, precise impacts to drive piles faster and more reliably, reducing overall project time and labor costs.

Core Features & Advantages

  1. Superior Power & Penetration: Operating at a high-pressure 32 MPa hydraulic system, the driver generates exceptional centrifugal force (up to 485 kN in the FV-400 model), enabling it to handle hard soil, dense sand, and other challenging ground conditions with ease.

  2. Extended Reach & Capacity: Capable of driving piles up to 18 meters in length, it is ideal for deep foundation projects such as high-rises, bridges, and industrial plants. Its robust hammer weight (up to 2700 kg) ensures stable, consistent energy transfer for secure pile placement.

  3. Enhanced Durability & Stability: Built with heavy-duty components like a reinforced arm (up to 750 kg) and a solid hammer mass, the machine offers outstanding operational stability. This minimizes excessive vibration, reduces wear on both the driver and the carrier excavator, and ensures longevity in tough job site environments.

  4. Market-Focused Flexibility: We provide adaptable solutions for our target markets, including a low minimum order quantity (MOQ of 1 set), negotiable pricing, and a reliable supply capacity of 15 sets per month to keep your projects on schedule.

Detailed Technical Parameter Table
Item / Model FV-250 FV-280 FV-300 FV-330 FV-350S FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operating Pressure (MPa) 30 32 32 32 32 32 32
Centrifugal Force (kN) 265 335 350 372 435 455 485
Max. Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1,700 1,900 2,100 2,300 2,400 2,600 2,700
Total Operating Weight (kg, approx.) ~2,200 ~2,400 ~2,770 ~2,970 ~3,070 ~3,350 ~3,450
Compatible Excavator Weight (tons) 20-30 20-30 30-35 33-40 35-40 40-45 45-60
Typical Packing Volume (CBM) 4-6 5-7 6-8 7-9 8-10 8-10 9-10
FAQ

  • Q: What is the delivery time and minimum order?
    A: We offer an MOQ of 1 set for flexibility. Delivery is swift, typically within 7-20 days after order confirmation, depending on the destination.

  • Q: Is this machine suitable for extreme weather conditions?
    A: Yes. The VIBRA Pile Driver is built with components rated for a wide temperature range, ensuring reliable operation in both the cold climates of Russia and the tropical heat of Southeast Asia.

  • Q: How do I choose the right model for my project?
    A: The primary considerations are your required pile length/weight and the size of your existing excavator. Use our detailed parameter table as a guide. For complex projects, our engineering team can provide a recommendation based on your soil report.

  • Q: What support do you offer after purchase?
    A: We provide comprehensive support including operational guidance, technical documentation, and facilitate access to service networks in your region for spare parts and maintenance.
